European Standard Wheat Flour Mill

Basic Info

Model NO.	50 - 2400 TONS / 24h
Condition	New
Customized	Customized
Color	White and Green
Wheat Milling Machine	Maize Milling Machine
Transport Package	Wooden Case to Protect The Machine
Specification	30-1000t/24h
Trademark	HB AFR
Origin	Hebei, China
HS Code	84378000
Production Capacity	a

Product Description

Wheat Flour Mill Factory can be installed as steel structure or multistory building

> Receiving Section (Pre-cleaning section)
To pre-clean the grain in the receiving to storage tank. Clean out some big impurity to protect the discharge outlet not block up when feed to flour mill. Also protect the following equipment working safely.
Remove dust in the grain. To be more cleaner in the workshop. Remove 90% big impurity and 95% dust.
> Cleaning Section
Further to clean out the middle and small impurity from grain. E. G., dust, stone, magnetic material, grains was bitten by insect and so on
After cleaning section, grains reach food standard.
In the cleaning process, grains will be added right moisture that suitable for next step - milling. After dampening, the finial flour will be good.

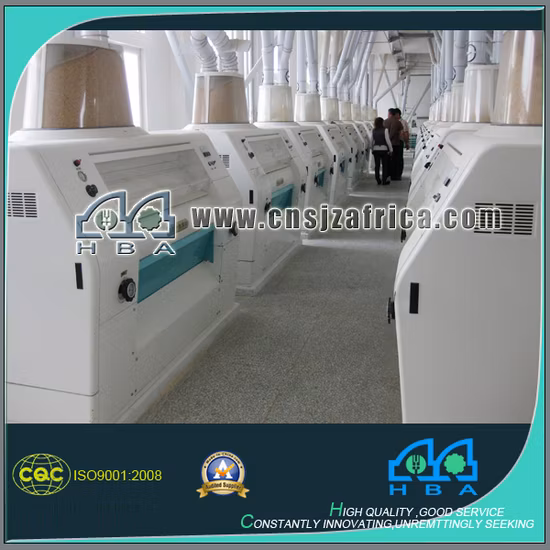

> Milling Section
* Adopt frequency conversion roller mill or Pneumatic roller mill. Automatically adjust roller distance according to stock quantity and stock variety.

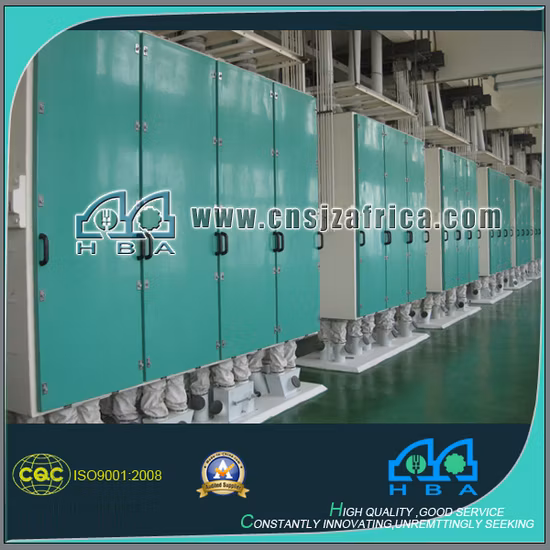

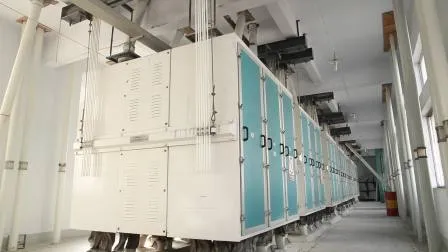

* Plan sifter, bigger sieve area and improve products' quality.
* With purifier, less bran residual, increase flour whiteness.
> Packing Section
Our packing machine is fully automatic weighting and packing. The precision is less than 0.2%. Like 25kg/bag, the weight is not less than or no more than 50g.
> Controlling section -- PLC SYSTEM can be selected
Automatically display raw grains, clean grains, flour, pollard, bran instant flowing quantity
Automatically display raw grains, clean grains, flour, pollard, bran instant flowing percentage.
Automatically display raw grains, clean grains, flour, pollard, bran addup flowing percentage in a fixed time.
With working history checking system.
With fault alarm system.
With printer.
Europe standard Brief instructions:
1. Adopt frequency conversion roller mill with stainless steel upper parts that above the roller. Automatically adjust roller distance according to stock quantity and stock variety.
2. PLC controlling system, fully automatic
3. All the Electrical parts: SIMENS
4. All the Sensor: OMRON
5. Main Bearing: SKF
6. Reducer: SEW
7. Motor: SIMENS COMPLEX
8. Roll: Japan Brand, MEIJI
9. Pipes: Punching pipes, stable and durable. Never get rusty.
10. All the screw conveyer, buckent elevator touching water is made of stainless steel
11. Magnetic: Made by stainless steel
