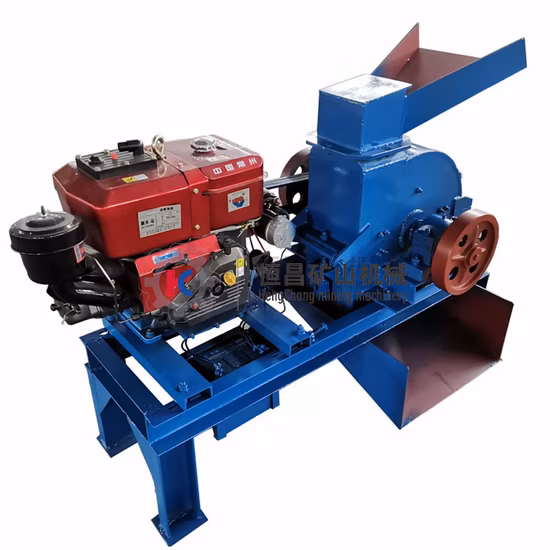

Small Capacity Gold Mining Machinery Stone Hammer Mill Crusher Gold Rock Hammer Mill for 2mm Discharge

Basic Info

Model NO.	Gold Rock Hammer Mill for 2mm Discharge
Application	Mine
Materials	Stone
Outlet Size	Output Size >1.5mm
Inlet Size	400*600
Condition	New
Warranty	1 Years, Except The Wear Parts
Name	Stone Hammer Mill
Capacity	5-10 Tph
Feeding Size	<50mm
Output Size	>1.5mm
Power	25-30 Kw
Diesel Power	Available 45HP
Hammer Mill Colors	Customized
Hammer Mill Price	Contact Us
Usage	Breaking Stones Into Fine Size
Keywords	Stone Hammer Mill, Rock Hammer Crusher
Wear Parts	Hammers and Screens
Lead Time	10 Working Days
Matching Machine	Hopper, Feeder, Jaw Crusher, Ball Mill
Shipping Cost	Depending on The Quantity of Hammer Mill
Transport Package	Steel Frame and Wooden Case
Specification	carbon steel and high manganese steel
Trademark	Hengchang
Origin	China
HS Code	8474209000
Production Capacity	500000/Year

Packaging & Delivery

Package size per unit product 180.00cm * 110.00cm * 100.00cm Gross weight per unit product 1000.000kg

Product Description

Small Capacity Gold Mining Machinery Stone Hammer Mill Crusher Gold Rock Hammer Mill for 2mm discharge1. Stone hammer mill Introduction
Hammermill, as one of the ore crushing equipment, is able to crush the ores below 50mm or tailings and middlings that are not released completely.

The released output could be concentrated by shaking the table in the next process. Being suitable for small-scale nonferrous and precious metal mines like tungsten, tin, and gold, the hammer mill could be an alternative to the ball mill to some extent. customize configured as per the actual ore situation.

It is with easy installation and operation, low investment, and quick effect. Its sieve opening size, a minimum of 1mm, can be customized and configured as per the actual ore situation.

2. Stone Hammer mill Details
The main parts of the stone hammer mill are the hammers and screens. The hammers are made of high manganese steel. The screens can keep the output size fit the customers' requested size.

3. Stone hammer mill StructureIts structure is similar to the hammer crusher.
4. Stone hammer mill Parameter

Model	Capacity (t/h)	Max Feeding Size (mm)	Output Size (mm)	Hammers (pcs)	Motor (kw)
200×500	1-2	≤50	0.1-12	6	5.5
300×500	1.5-3	≤50	0.1-12	8	11
400×500	3-6	≤60	0.1-12	10	15
400×600	4-8	≤80	0.1-12	10	22
500×600	5-10	≤100	0.1-12	12	30
600×600	12-20	≤150	0.1-12	20	37

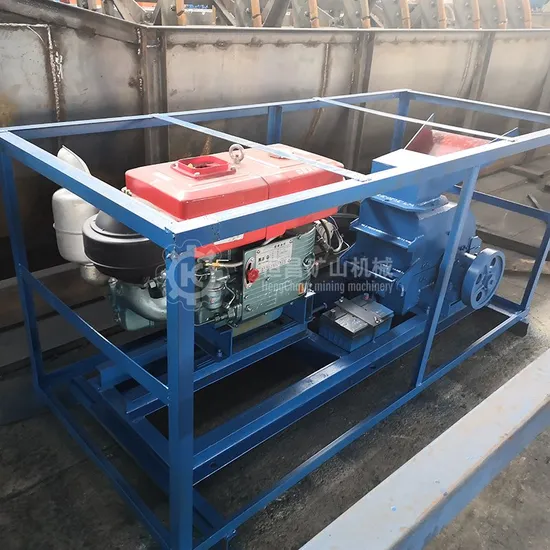

5. Package and delivery

6. Related products 150x250 mobile jaw crusher 900x900 mill ball mill mini gold concentrator7. About us
Jiangxi Hengchang Mining Machinery Manufacturing is located on No.3 Chuangye Road. Guzhang Industrial Park. Shicheng County. Ganzhou City. Jiangxi Province. China. Our company is engaged in the mineral processing equipment research, development, design, and production for many years history has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up a good reputation. And mainly the manufacture of the products like as shaking table. Flotation equipment. Crushing equipment. Magnetic separator. Screening equipment. Classifying equipment. Agitation tank, Feeding equipment. Gravity separation equipment. Wet separation equipment. Spiral chute. Saw-tooth wave jig and Diaphragm Jig. Grinding equipment. Ball mill. Slurry pump. Centrifugal pump, Conveying equipment.

We manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten, and lead. zinc. tin. molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile, diamonds, other precious metals, and precious metals mine, and for the flotation colored black metal, precious metals, and other minerals. And we have export qualifications, our products sell well all over the world for several years, especially exported to Brazil. India. Indonesia.South Africa. Somalia, Philippines. Malaysia. Sudan, Nigeria. Iran, Russia, Ghana. Kazakhstan Kyrgyzstan.Cambodia, Vietnam, Korea, Mongolia, and other countries.

8. FAQ

Q: Are you a trading company or manufacturer?
A: We are a factory.not dealer. Direct factory sale makes the price more competitive.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What are your terms of payment?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
