Tefude Pillow Bag Horizontal High-Speed Pita Bread Packaging Machine Tortilla Flow Wrapping Machine

Basic Info

Model NO.	TFD-D320S
After-sales Service	Engineer Service Overseas, Commissioning, Training
Warranty	1 Year
Automatic Grade	Automatic
Application	Cleaning, Detergent, Cosmetics, Skin Care Products, Dairy Products, Hair Care Products, Vegetable, Fruit, Fish, Meat, Snack
Type	Filling and Sealing Machine
Forming Species	Bag Moulding
Forming Function	Filling, Seal
Driven Type	Electric
Material Type	Solid
Packaging	Bag
Packaging Material	Film
Packing Speed	35-220 Bags/Min
Machine Dimension	(L)4000*(W)950*(H)1600 mm
Packing Material	OPP/CPP PT/PE Kop/CPP Alu-Foil
Usage	Packing
File Width	80-300 mm
Core Component	PLC, Motor
Driven	Electric
Machine Type	Horizontal Packing Machine
Power Supply	AC 200V 50Hz
Motor Power	5.0 Kw
Machine G.Weight	550kg
Main Function	Filling, Sealing, Wrapping
After-Sale Service	Field Maintenance, Field Installation, Training
Transport Package	Normal Export Wooden Case Package
Specification	(L)4000*(W)950*(H)1600 mm
Trademark	TEFUDE
Origin	China
Production Capacity	50sets/Month

Product Description

Products Description
TFD-D320S Down paper flow wrapper
Main Feature

1. Using three-servo driving, motion control system CPU, with higher- precision, stronger versatility, faster packing speed.
2. LCD screen man-machine interface, interactive operation, positioning downtime, automatically diagnose and eliminate fault, standby function with no material to avoid cutting the film.
3. It's easy to adjust the packing speed and bag length.
4. High-precision and high-sensitive eletric eye automatic track, after set the program no need to manual adjusting. Independent control the sealing temperature, suitable for various packing material with nice and tightly seal.
5. Optional device: printer, nitrogen charging device and alcohol spraying device.

Application: Suitable for soft, scattered and sticky irregular products packaging, such as instant noodles, medicine, disposable face mask, cake, hardware, wet tissue, preserved fruit etc.

Products Model	TFD-D320S	TFD-D380S
Bag size	(L)80-480mm(W)30-220mm	(L)80-480mm(W)30-220mm
product height	(H)5-35mm	(H)5-60mm
Packing speed	35-220bags/min	35-220bags/min
Film Width	80-300mm	80-450mm
Packing Material	OPP/CPP PT/PE KOP/CPP ALU-FOIL
Machine Dimension	(L)4000*(W)950*(H)1600 mm
Motor Power	5.0KW	5.0KW
Power Supply	AC 200V 50Hz	AC 200V 50Hz
Machine G. Weight	550kg	550kg

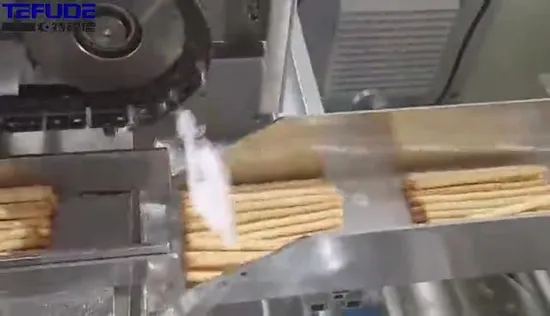

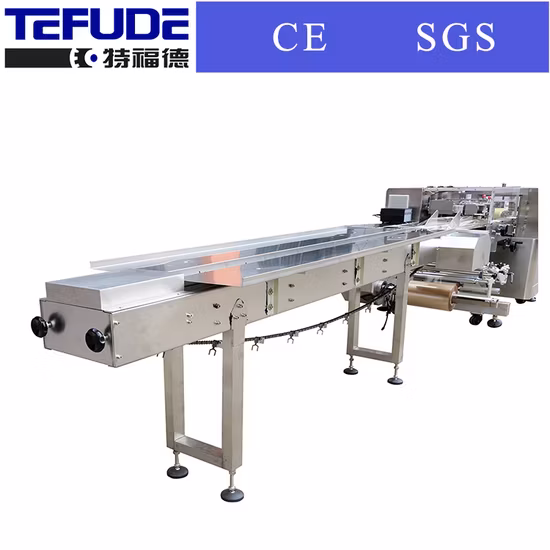

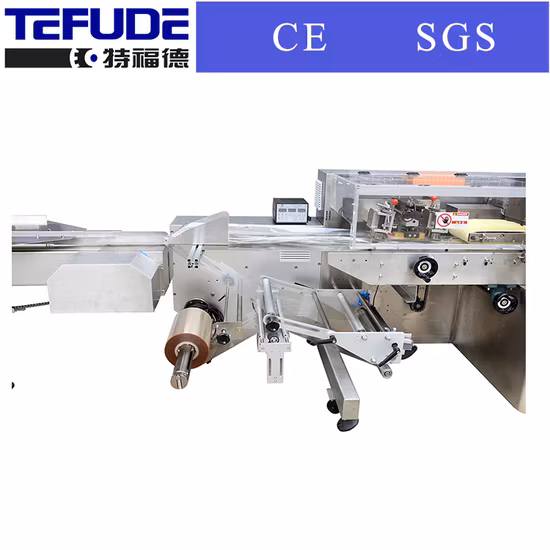

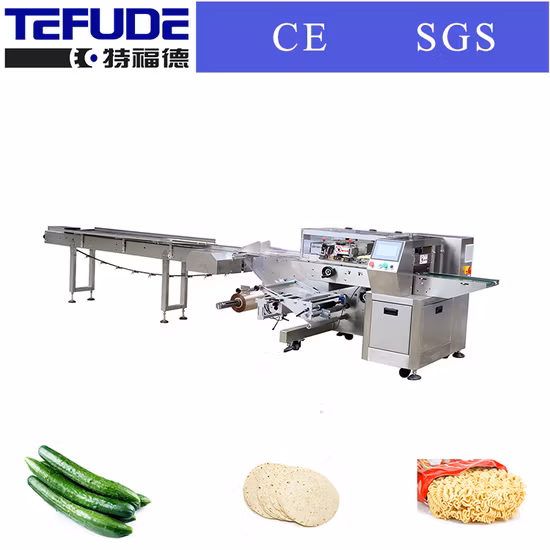

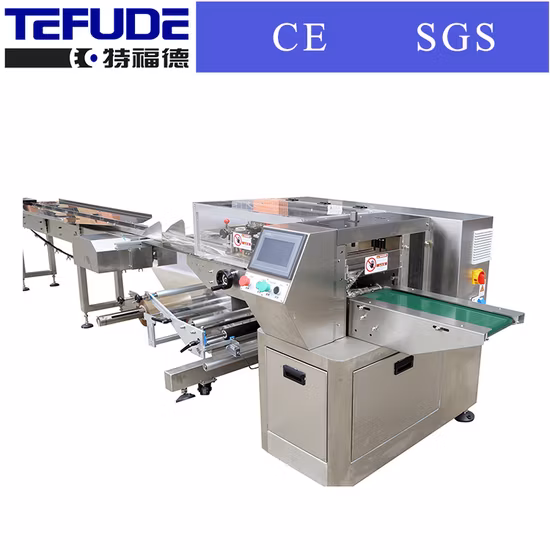

Machine Image

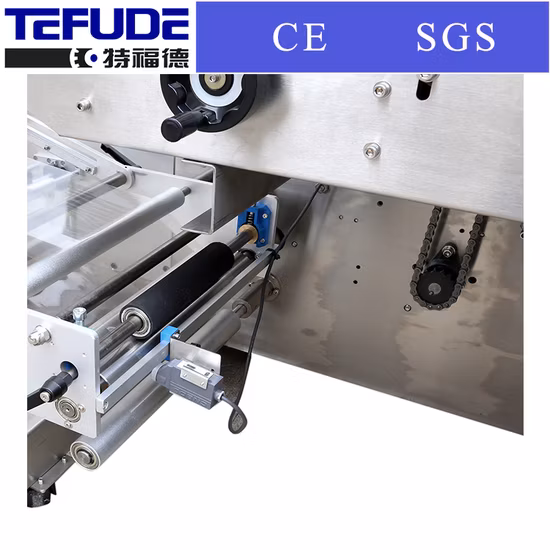

Machine Details



Related products





Application



OUR PARTNERS



Company Profile



Certificate



Packaging & ShippingFDA
1. Can your machine meet our needs well?After receiving your inquiry,please kindly consult with us and provide the following informations:The packaging products name; Packaging bag size (length/width), Or the weight of each packaging bag;Packing speed; It 's better for you to send us the photos and videos of packed products for our reference.Then our engineer will make the proposal according to your specific requirements.Every machine is customized to meet your needs well. 2. Are you a factory or trading company?We are the factory, and especially R&D, manufacturing and sell various packing euipments. We have engaged in the packing R&D and production near 10 years. 3. What's your payment term?T/T, West Union, or cash4. How could you ensure the machine quality, after we placed the order?Before delivery, we will send you the pictures and videos for you to check the quality, and you also can send your inspector to our factory for inspection.5. We are afraid you won't send us the machine after we send you the money?Please note our above business license and certificate. And if you don't trust us, then we can use the alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality. 6. Why we should choose your company?We are professtional in packing machines near 10 years, and we provide better after-sale service. Dealing with us is gurantee without risk.7. Where is your company located? How can I visit there? Our factory locates in Foshan City, Guangdong Province, China. One hour to Guangzhou. We can arrange our driver to pick you up.We respect every customer as our friend and we sincerely to do business and make friends with them.
