Rotary Automatic Filling Machine Yogurt Milk Full Automatic Dairy Beverage/ Yogurt/ Soybean Beverage Milk Drink Rinsing Filling Dairy Drink Machine

Basic Info

Model NO.	CGN
Feed Cylinder Structure	Single-Room Feeding
Dosing Device	Capacity Cup
Filling Principle	Atmospheric Pressure
Packaging Container Lifting Structure	Chute Lifting
Structure	Rotary
Packaging	Bottle
Packaging Material	Glass Bottle
Machine Material	Stainless Steel 304/316
Product Name	Milk Filling Machine
Certificate	CE, ISO, SGS
Suitable Product	Dairy Beverage/ Yogurt/ Soybean Milk
Bottle Size	200ml-1000ml
Workshop Layout	Free Design
Function	Risering Filling Capping
Keywords	Milk Production Line
Electrical Components	Siemens, Mitsubishi, etc
Cap Type	HDPE Cap
Controlled by	Siemens PLC
Shippine Date	80 Working Days After Downpayment
Color	Silver
Voltage	Customized
Bottle	HDPE/Pet Bottle
Transport Package	Exported Standard Wooden Case
Specification	2000-18000BPH
Trademark	HY-FILLING
Origin	Zhangjiang, Jiangsu, China
HS Code	8422902000
Production Capacity	1000 Sets/Year

Product Description

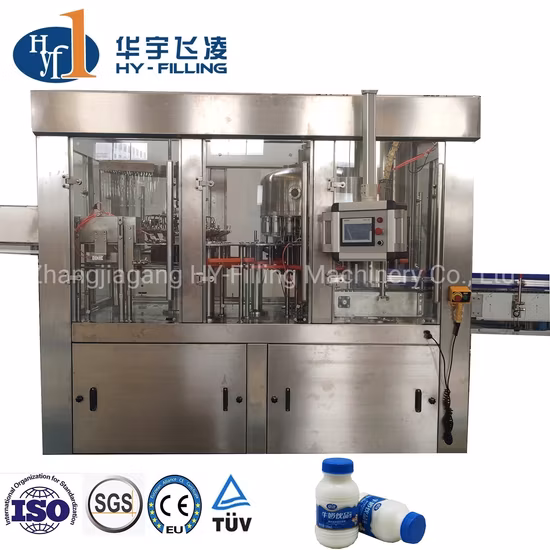

This machine is our company's introduction of German technology, combined with the characteristics of dairy production industry, designed to develop dairy/milk/yogurt filling equipment. The machine has excellent mechanical operation reliability, improved rinsing, filling, capping and other functions.

Detailed Images

	Rinsing partIt is rotary type, mainly sued for rinsing new bottles send the bottles to the filling machine.Renew stainless steel clip, simple structure, convenient adjustment; small area touch with bottle mouth, avoid the secondary pollution for the bottle mouth efficiently.

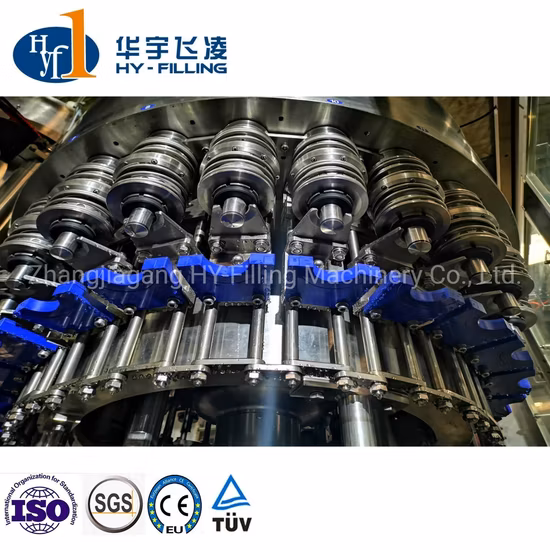

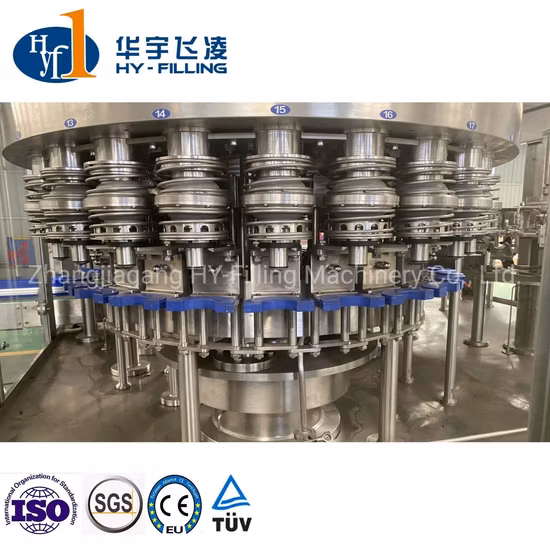

Filling partFilling valve adopts constant mechanism valve, filling fast and high accuracy of filling liquid level.The main drive adopts gear drive, with high efficiency, low noise, long life, easy maintenance, sufficient lubrication, grease can lubricate centralizing automatically, adopts transducer to the speed of main motor to control, the machine adopts step-less frequency conversion timing. The material for the whole platform and frame is carbon steel with stainless steel outside.
	Capping partThe capping rotates through reduction box drive rotational wheel, which make the cap leave the hopper with the function of centrifugal force. There is a separation device for right cap and reverse cap at the entrance, when the reverse cap passes, the cap automatically fall into and return to pipeline, and blow the reverse cap automatically to hopper through wind power.

Flow Chart

We provide the Complete turnkey project for beverage production line includes:

1. Water Treatment System (Water Filtration)
2. Preparation/Processing System (Mixing System for Drinks like CSD, juice etc)
3. Injection molding machines (for pet preform)
4. Bottle Blowing Machine (Making plastic bottles)
5. Air Conveyor (Transport empty bottles)
6. Filling Machine (Filling product into bottles)
7. Cap elevator (Transport cap)
8. Blow dryer (Blow away water drops)
9. Flat Convey (Transport bottle)
10. Code Printer (Printing the date on the filled bottle)
11. Labeling Machine (Labeling for filled bottle)
12. Bottle Packing Machine (package the filled bottles)
13. Palletizing Machine (to palletize the cartons)

Auxiliary Machines

	1.Water treatment Water treatment is equipped for pure water, mineral water, and water used in beverage drink. It contains RO, natrium filter, ultra filter, activated carbon filter, ion exchanger, ozone processor etc.
2.Bottle Blowing Machine Divided into: semi-automatic bottle blowing and full automatic bottle blowing machine. Suitable for: PET bottle. Bottle size: 500ml-2L

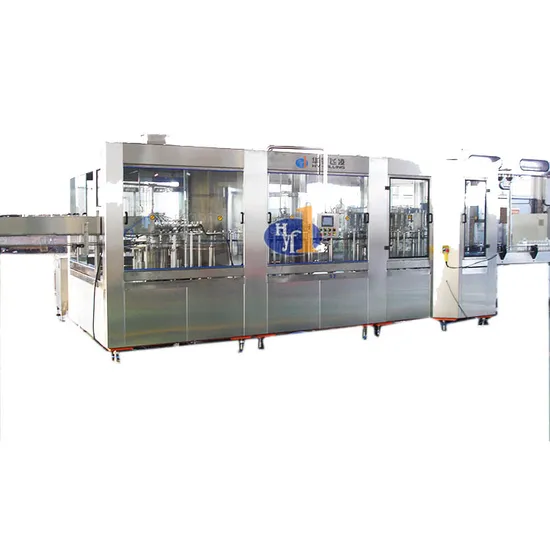

	3.Filling MachineThe machine is combined with rinsing, filling and capping, which special designed for PET bottled. It is stable characteristic, advanced technology, nice appearance and complete function.
4.Filled Bottle Conveyor System Conveying belt is designed by module, component can be interchanged easily, structure is compact, noise is little, easy assembling and maintaining, have flexibility to combine the bottle type according to the different capacity.
	5.Packaging System Customized: Sleeving Label Machine, Film Shrink-wrapping Machine, Palletizing machine, Date code printer etc.
